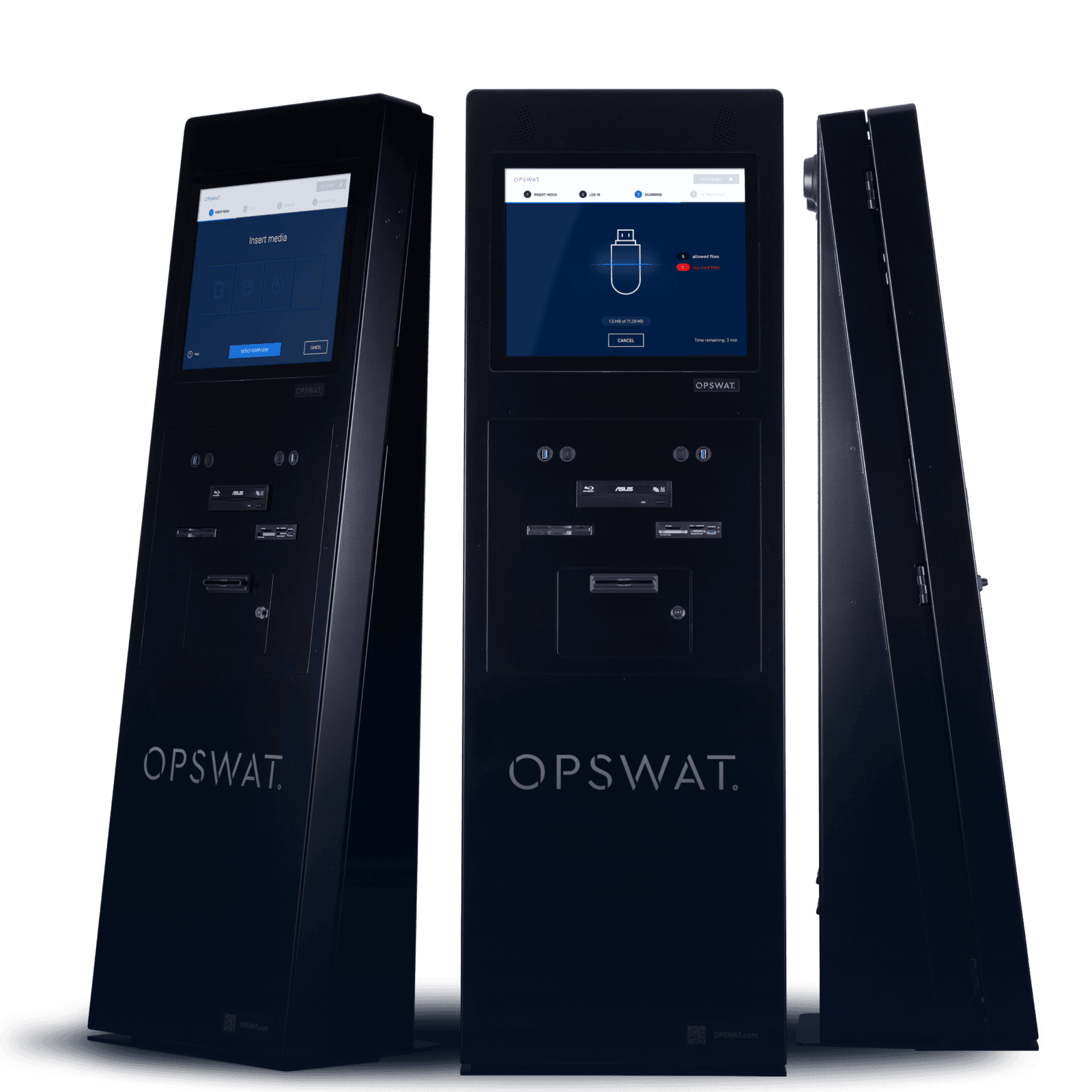

Kiosks
Software
Software
Firewalls
Firewall
Accessories

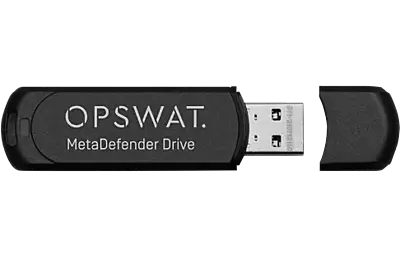

MetaDefender Drive
MetaDefender Drive
We are specialists in protecting you.
Industry-leading cyber experts at your fingertips

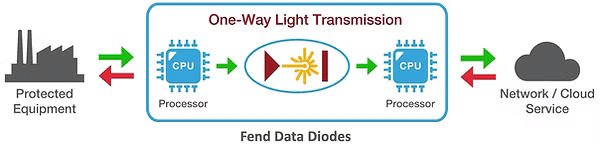

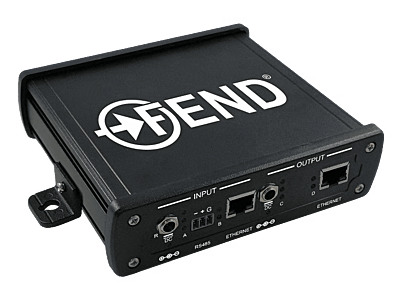

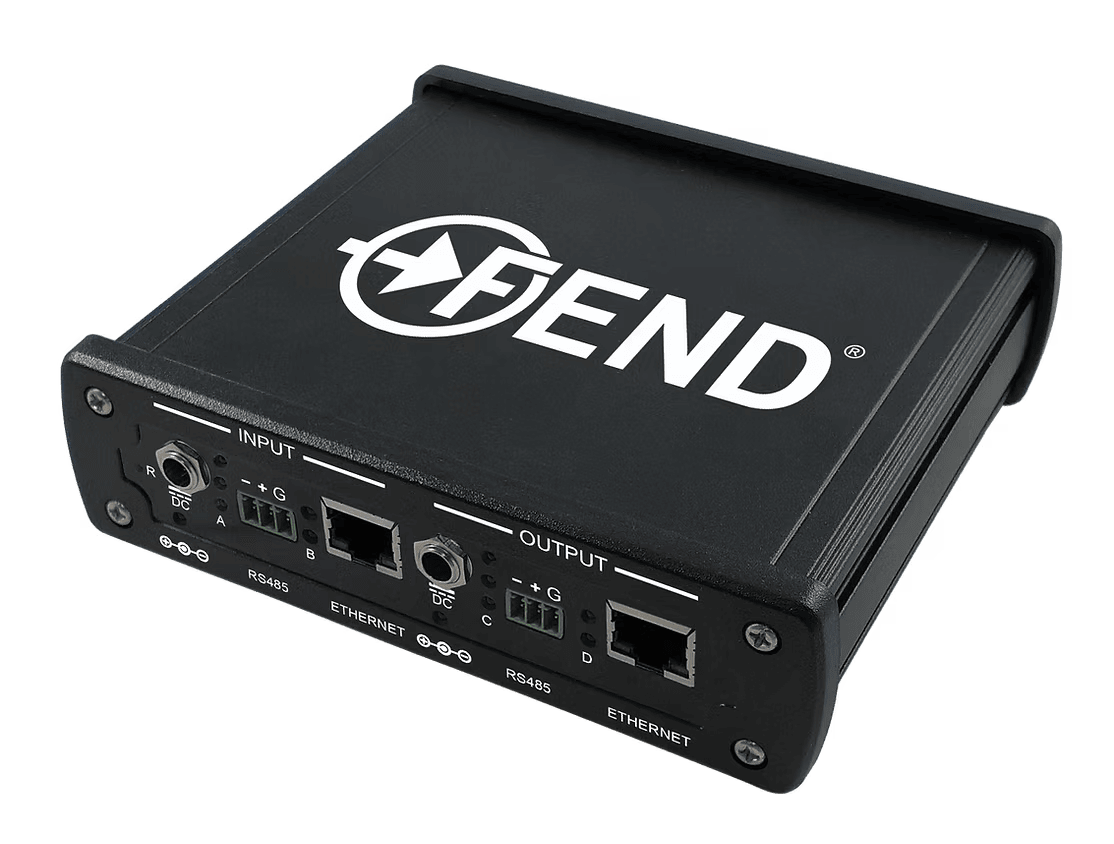

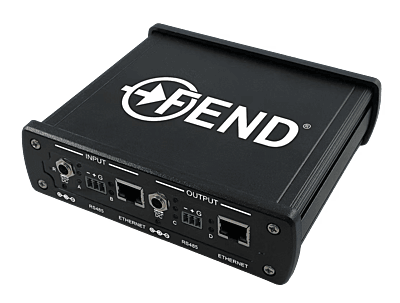

What is a Data Diode?
A data diode is a device that allows information to travel in only one direction. Data diodes physically transport data using light across two optically isolated circuits rather than relying on software and code like more vulnerable firewalls and threat detection systems. Keep ransomware and other attacks out of your networks!

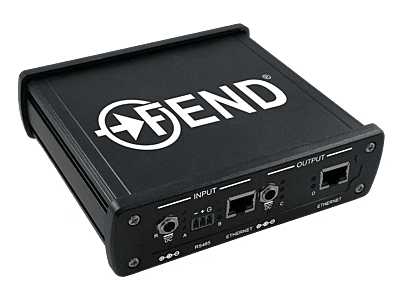

Which Data Diode is Right for You?
Which Data Diode is Right for You?
| XE5 | SE5 | CE5 | XE15 | CE15 | SE15 | ||
|---|---|---|---|---|---|---|---|
| Maximum data throughput (Ethernet) | 5.0 Mbps | 5.0 Mbps | 5.0 Mbps | 15.0 Mbps | 15.0 Mbps | 15.0 Mbps | |
| Isolation Technology | Full Optical Isolation | Full Optical Isolation | Full Optical Isolation | Full Optical Isolation | Full Optical Isolation | Full Optical Isolation | |
| Dimensions (L x W x H), inches | 5.1" x 5.8" x 1.6" | 5.1" x 5.8" x 1.6" | 5.1" x 5.8" x 1.6" | 5.1" x 5.8" x 1.6" | 5.1" x 5.8" x 1.6" | 5.1" x 5.8" x 1.6" | |

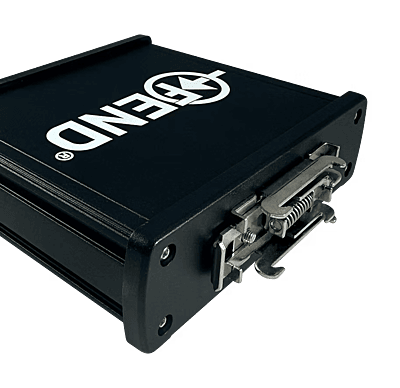

| Mount Options | DIN rail (included), Wall mount feet (optional) | DIN rail (included), Wall mount feet (optional) | DIN rail (included), Wall mount feet (optional) | DIN rail (included), Wall mount feet (optional) | DIN rail (included), Wall mount feet (optional) | DIN rail (included), Wall mount feet (optional) | |
| Diode power consumption (max) | 4.0 W | 4.0 W | 4.0 W | 4.0 W | 8.0 W | 4.0 W | |
| Inputs | Ethernet, Serial RS-485 | Ethernet, Serial RS-485 | Ethernet, Serial RS-485 | Ethernet, Serial RS-485 | Ethernet, Serial RS-485 | Ethernet, Serial RS-485 | |

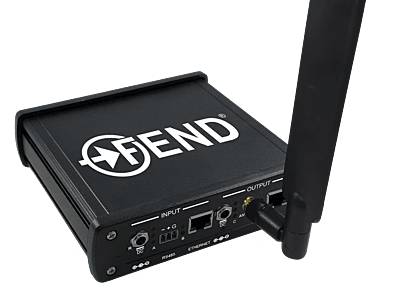

| Outputs | Ethernet | Ethernet, Serial RS-485 | Ethernet, Cellular 4G LTE AT&T / Verizon | Ethernet | Ethernet, Cellular 4G LTE AT&T / Verizon | Ethernet, Serial RS-485 |
